GO XYR
The GO XYR stage moves loads of up to 10 kg with nanometer precision along the X- and Y-axis, as well as around the Z-axis.
All products in the modular PRECIBEO GO system are compatible and are easily combined into multi-axis systems offering smooth continuous motion, fast step and settling times, and self-locking at rest.
| Positioning | GO-XYR-8N | GO-XYR-16N |
|---|---|---|
| Travel (X, Y) | ±10 mm | |
| Travel Θ(Z) | ± 10° | |
| Minimum Incremental Motion (X, Y) | 2 nm | |
| Minimum Incremental Motion Θ(Z) | < 0,1 µrad | |
| Repeatability (X, Y) | ± 200 nm | |
| Repeatability Θ(Z) | ± 15 µrad | |
| Motion | GO-XYR-8N | GO-XYR-16N |
| Maximum Operating Force (Push/Pull) | (X) 10 N / (Y) 8 N (min.) | (X) 20 N / (Y) 16 N (min.) |
| Holding Force (When Power Is Off) | (X) 12 N / (Y) 10 N (min.) | |
| Maximum Speed At No Load | 8 mm/s | |
| Maximum Speed At Max Push / Pull Force | 5 mm/s (min.) | 1 mm/s (min.) |
| Drive Type | GO-XYR-8N | GO-XYR-16N |
| Base Module | PRECIBEO GO Linear Stage LS4545 | |
| Mechanical | GO-XYR-8N | GO-XYR-16N |
| Maximum Load Centered on Top | 10 kg | |
| Diameter | 165 mm | |
| Height | 73,5 mm | |
| Miscellaneous | GO-XYR-8N | GO-XYR-16N |
| Cable From Each of the GO Stages | 2 m cable (±5%) with ix Industrial™ connector | |
| Material | Anodized Aluminum | |
Related Products
GO TipTilt HV
The PRECIBEO GO TipTilt HV stage moves loads of up to 2,5 kg with nanometer precision along the Z-axis, as well as around the X-axis and the Y-axis, in down to 10-4 Pa vacuum.
GO XYR HV

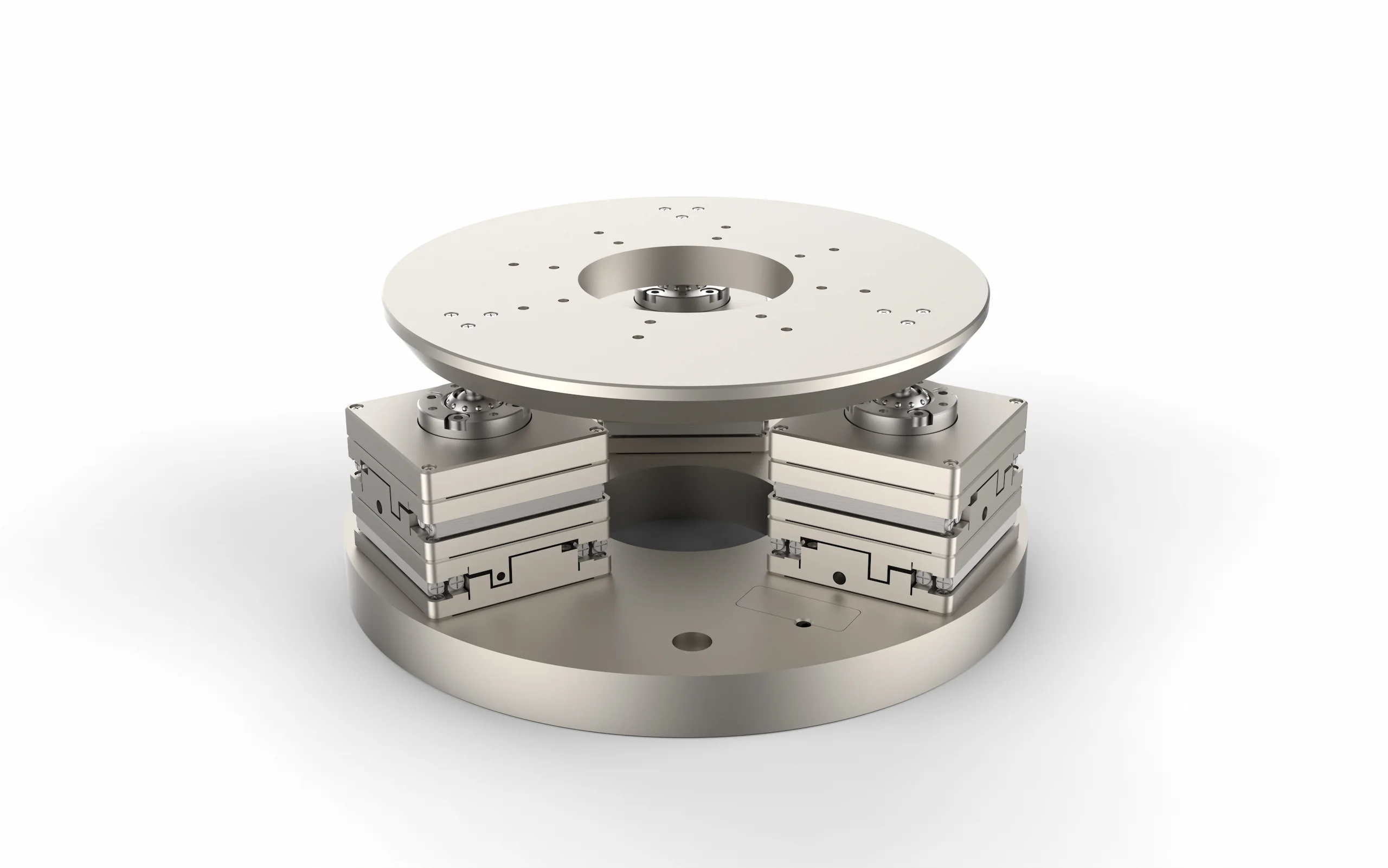

The PRECIBEO GO XYR HV stage moves loads of up to 10 kg with nanometer precision along the X- and Y-axis, as well as around the Z-axis, in down to 10-4 Pa vacuum.
