PRECIBEO GO rotation stages
Piezo Rotation Stages for Precision Angular Positioning
Microdegree motion. Unlimited rotation. Compact design.
PRECIBEO GO piezo rotation stages combine 10 µ° sensor resolution and minimum incremental motion with unlimited angular travel. Position your payload with closed-loop control, move it with 90 mN·m operating torque, and hold it securely with the drive self-locking at rest.
10 µ°
Sensor resolution and minimum incremental motion
∞
Unlimited rotation through successive full turns
90 mN·m
Minimum operating and power-off holding torque
2 kg
Maximum load in Z
10⁻⁴ Pa
High-vacuum option
Choose your environment
Standard or high-vacuum rotation
Both versions offer the same published angular resolution, torque, speed, dimensions and Z-direction load capacity. Select the environment and cabling that fit your instrument.
High vacuum

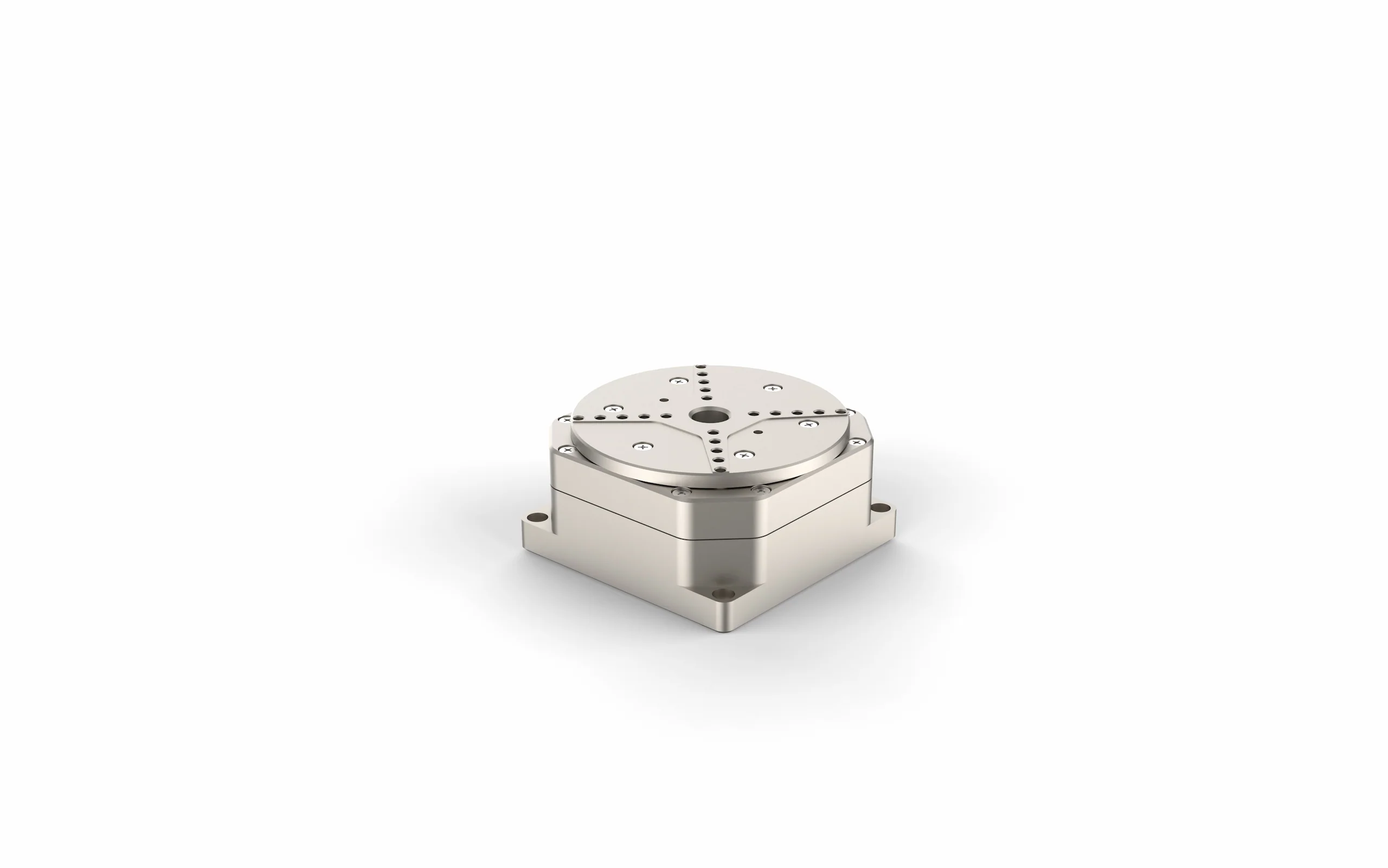

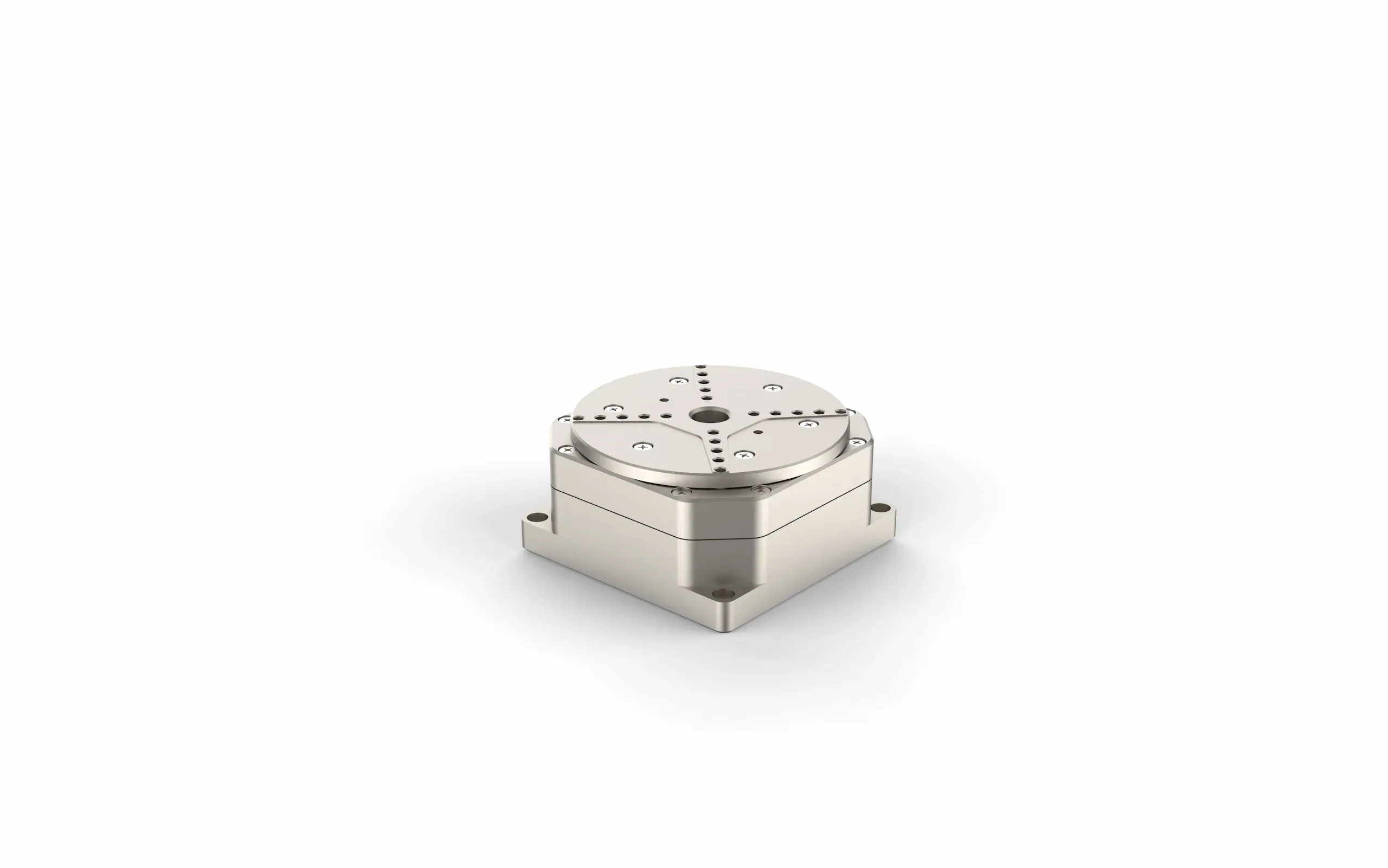

GO-RS4545HV
For high-vacuum systems down to 10⁻⁴ Pa
- Connection
- Vacuum- and air-side cables
Compact rotary positioning
What is a piezo rotation stage?
A motorized rotation stage—also called a rotary positioning stage or rotational stage—turns a payload around a controlled axis for angular adjustment of samples, optics and instrument components.
The rotary piezo motor supplies the motion; the complete stage combines the drive, bearings, mounting platform and position feedback. PRECIBEO GO uses piezo walking drives for fine angular movements and high torque in a miniature package. An absolute optical encoder measures position, while the GO Controller provides closed-loop motion control.
Why choose a PRECIBEO GO precision rotary stage?
Fine adjustment through complete revolutions
Move through large angles and make fine adjustments with the same stage. The 10 µ° minimum incremental motion equals 0.00001°, approximately 0.175 µrad, while unlimited travel supports successive revolutions.
Torque for motion and stable holding
The piezo walking drive provides at least 90 mN·m operating torque and at least 90 mN·m holding torque with power off. Self-locking keeps the platform in position without continuously powering the drive.
Miniature and lightweight
The GO-RS4545 measures 45 × 45 × 23 mm and weighs 140 g ±10%, excluding its cable and connector. A 6 mm central aperture provides through-access within a compact mechanical envelope.
Smooth motion and responsive positioning
Preloaded ball bearings and a piezo drive support smooth continuous motion and fast move-and-settle operation. Maximum speed is 35°/s without load; the specified speed at maximum operating torque is at least 20°/s.
Rotary performance
Fine motion, full turns and secure holding
Build around a compact 45 × 45 mm platform with a 6 mm central aperture, then match payload inertia, torque and speed to your positioning task.
Plan the rotating assembly
The 2 kg load rating applies in Z. For other mounting directions, consider payload mass, center of gravity, inertia, acceleration and external forces.
For successive full turns, route any payload cables and tubing so they remain clear throughout the intended motion.
The standard and high-vacuum versions share the same motion and load specifications. Only the operating environment and cabling differ.
When a walking-piezo rotation stage is the right fit
A GO walking-piezo stage is a strong choice when microdegree increments, unlimited travel, compact dimensions, useful torque and unpowered holding are required together.
Evaluate the complete loaded system—including payload inertia, speed, settling behavior, mounting orientation and cable routing—rather than selecting on angular resolution alone.
Complete your system
Combine rotation and linear positioning
Start with one rotary axis and add the motion your application needs. Combine rotary and linear axes in one modular positioning system.
Build around your axes
Mount a GO-LS4545 on the rotation stage using the Rotation Stage Adapter Plate for rotation plus radial travel. Combine two GO-LS4545 stages with a GO-RS4545 for XY plus rotation, or add vertical positioning for XYZ plus rotation.
Control it your way
A GO Controller is required and operates up to three stages simultaneously. Two daisy-chained controllers provide six-axis control through one computer connection. Use USB or RS485 through the GO I/O port. Control motion with Precibeo ASCII Rapid commands, GO Motion, GO Command, LabVIEW drivers or DLLs. Add the GO Joystick for convenient manual positioning.
High vacuum
10⁻⁴ Pa
Vacuum-compatible rotary positioning
The GO-RS4545HV retains the standard stage’s published angular resolution, torque, speed, dimensions and Z-direction load capacity for operation down to 10⁻⁴ Pa.
PTFE-coated vacuum-side wires run in a braided metal sleeve. Connect the vacuum-side and air-side cables through your D9SUB chamber feedthrough to the GO Controller outside the chamber.
Applications
Precision angular positioning for science and industry
Optics and photonics
Angular alignment of optical components and assemblies
Microscopy and imaging
Sample orientation within a compact positioning system
Metrology and inspection
Presenting a component at selected measurement angles
Research and OEM instruments
Integrated rotary positioning, including high-vacuum setups
Angular performance
Match minimum incremental motion to the measurement or alignment task.
Payload and orientation
Consider mass, center of gravity and mounting direction. The 2 kg rating applies in Z.
Torque and dynamics
Account for payload inertia, acceleration, external forces and required speed.
Integration
Check the aperture, mounting envelope, additional axes, controller and environment.
Cable routing
For successive full turns, plan routes for cables and tubing attached to the rotating platform.
Your questions
Frequently asked questions
Does 10 µ° resolution mean 10 µ° positioning accuracy?
The 10 µ° specification describes sensor resolution and minimum incremental motion. Share your positioning requirements so we can assess the complete system.
Can the stage rotate beyond 360°?
Yes. Both versions provide mechanically unlimited angular travel. The usable range of an assembled system also depends on clearances and any cables or tubing attached to the rotating payload.
Will the stage hold position without power?
Yes. The walking piezo drive is self-locking at rest, with a specified minimum power-off holding torque of 90 mN·m.
Let’s find your configuration
Find the right rotation-stage configuration
Tell us your angular positioning requirements, payload, center of gravity, mounting orientation, speed, available space and operating environment. We will help configure the rotary stage, linear axes, controller and accessories for your application.
Email info@precibeo.com
or call +46 18 700 13 40
