Vertical axis

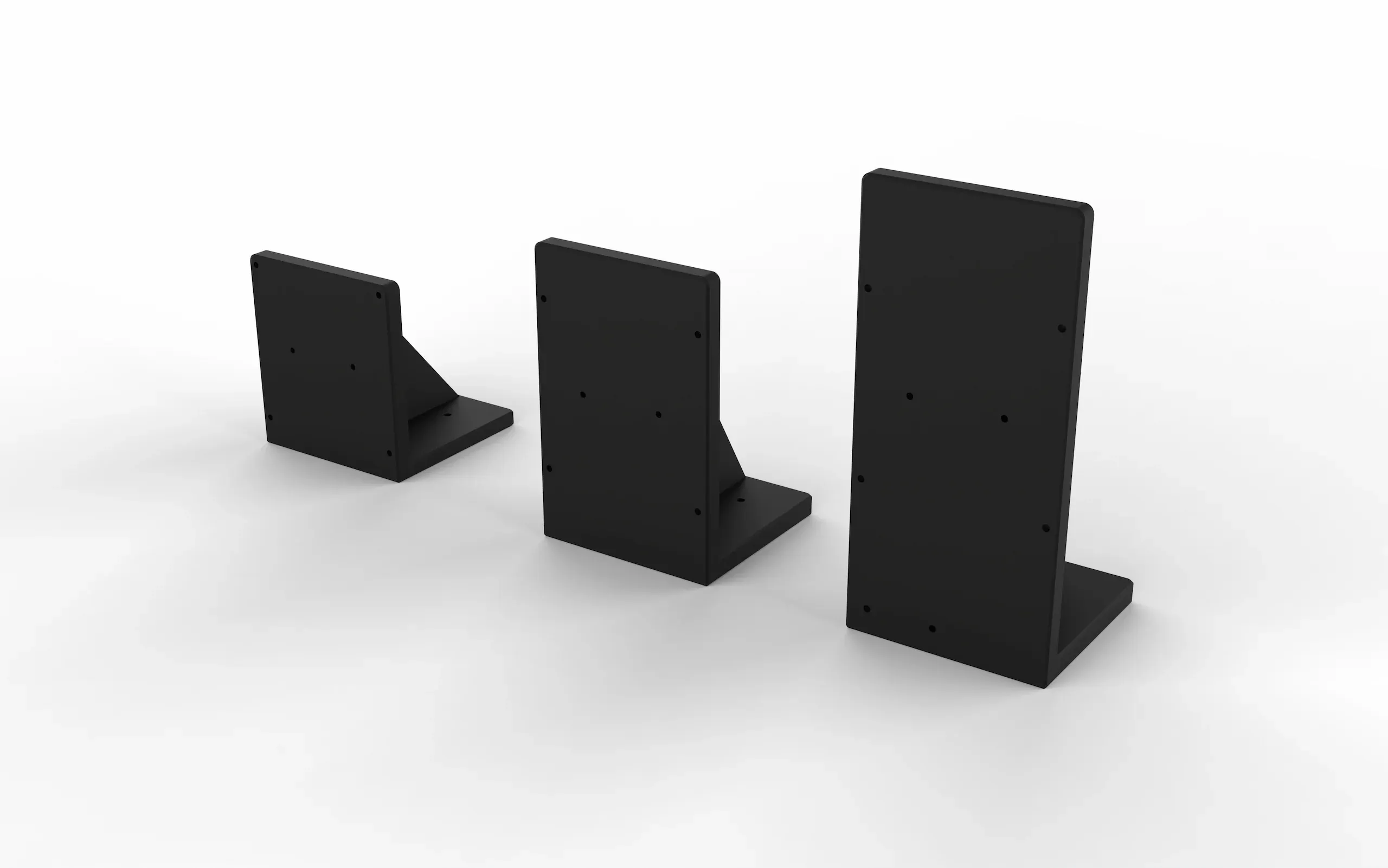

GO Vertical Mount
Mount GO-LS4545, GO-LS6545 or GO-LS8545 vertically in a modular XYZ system.
- Fit
- Standard environments
PRECIBEO GO accessories
Positioning Stage Accessories
Mount, combine and control your PRECIBEO GO stages
Build your positioning system around the task. PRECIBEO GO accessories bring together vertical stage mounting, linear–rotation combinations, microscope sample handling and hands-on motion control in one modular system.
3 sizes
Vertical mounts for GO-LS stages
XYZ
Compact vertical-axis integration
RX
Linear and rotation stage combination
3 axes
Hands-on joystick control
10⁻⁴ Pa
High-vacuum mounts and adapter option
Choose by task
Accessories for mounting, samples and control
Choose mounts and adapter plates for your stage arrangement, add a sample holder for microscopy, or guide three axes with the GO Joystick. High-vacuum mounts and the rotation adapter support compatible GO HV stages down to 10⁻⁴ Pa.
High vacuum

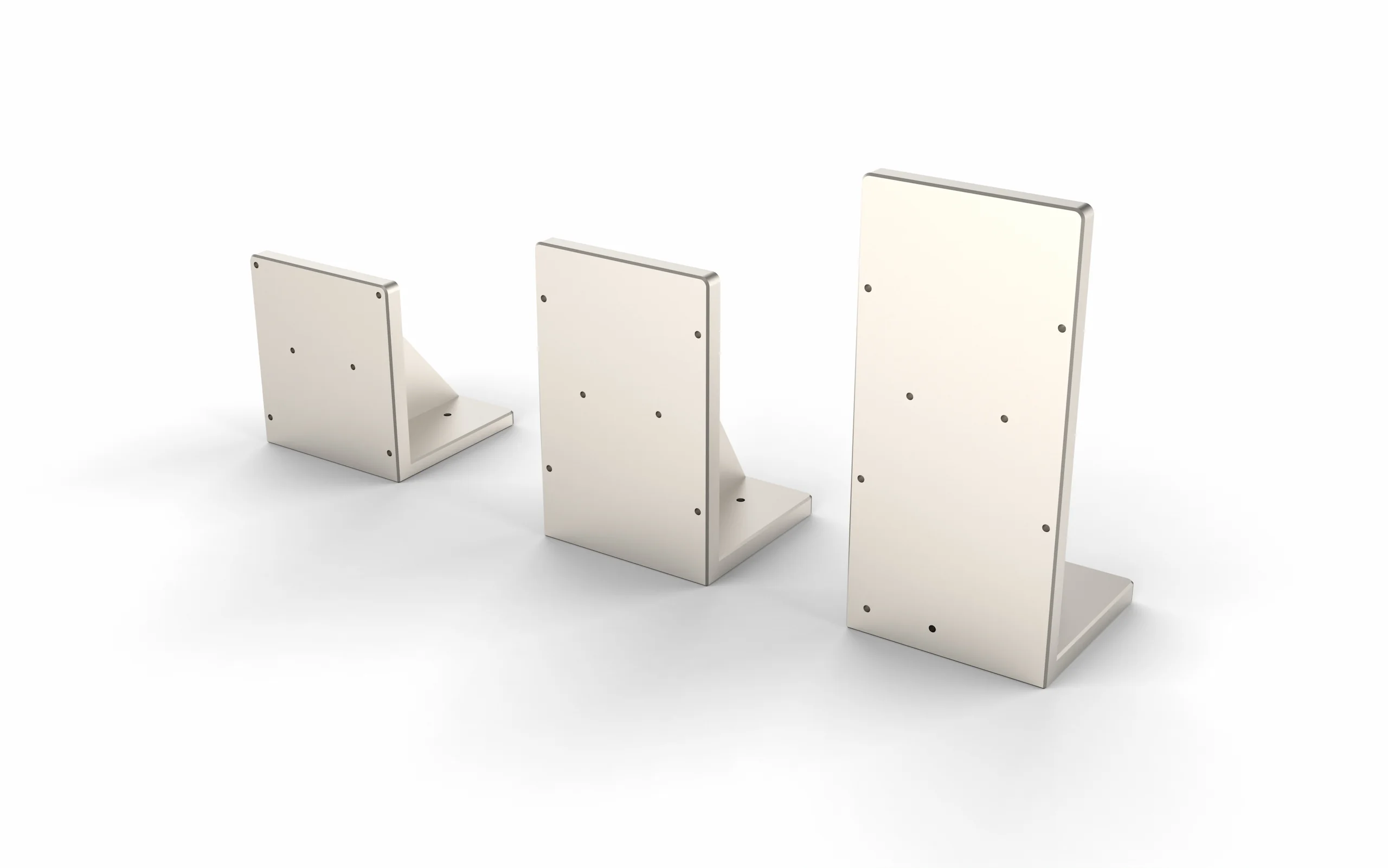

GO Vertical Mount HV
Integrate a compatible GO-LS HV stage as a vertical axis down to 10⁻⁴ Pa.
- Fit
- High vacuum to 10⁻⁴ Pa
Linear + rotation

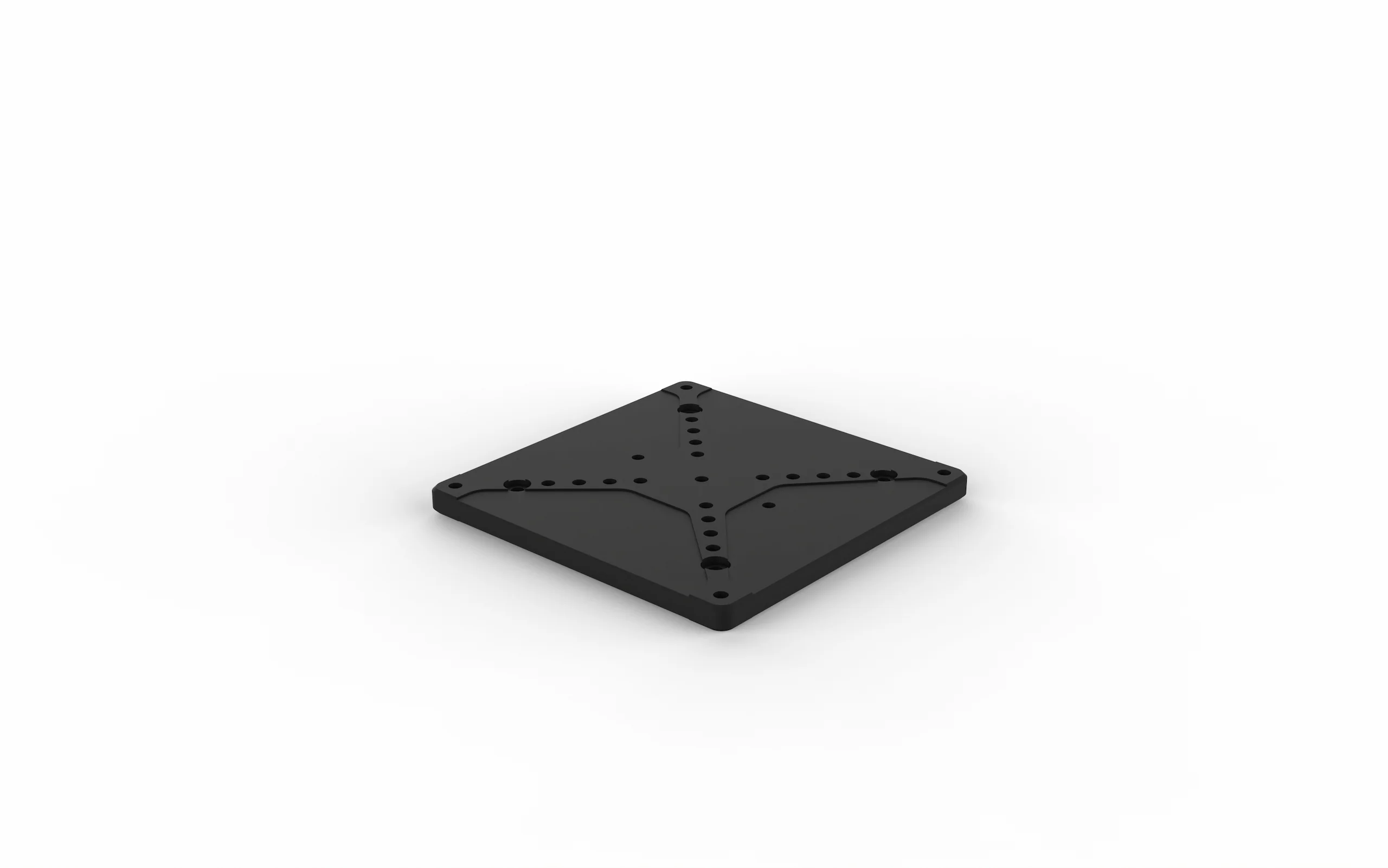

Rotation Stage Adapter Plate
Mount a GO Linear Stage above a GO Rotation Stage for translation and angular adjustment.
- Fit
- Standard and HV systems
Microscopy
GO Sample Holder 4545
Hold microscope slides or Petri dishes on a three-axis LS4545 assembly.
- Fit
- GO-LS4545 XYZ assembly
Manual control
GO Joystick
Guide three connected GO stage axes by hand through GO Motion for Windows.
- Fit
- GO Motion and GO Controller
Quick selector
Use the table to identify a starting point, then check the product page for mounting interfaces, drawings and STEP files.
Match the accessory to your task
| Your task | GO accessory | System fit |
|---|---|---|
| Integrate a vertical axis into an XYZ stage | GO Vertical Mount | GO-LS4545, GO-LS6545 or GO-LS8545; standard and HV versions |
| Mount a linear stage above a rotation stage | GO Rotation Stage Adapter Plate | GO linear and rotation stages; standard and HV versions |
| Hold microscope slides or Petri dishes | GO Sample Holder 4545 | Three-axis LS4545 assembly |
| Position stages by hand | GO Joystick | GO Motion for Windows, a GO Controller and connected GO stages |
Vertical axis integration
Vertical mounts for high-force positioning
Every GO linear stage is highly suitable for vertical motion. Choose the arrangement around travel, space and mounting geometry—not because one stage format is inherently more capable vertically.
Use any GO-LS size as a vertical axis

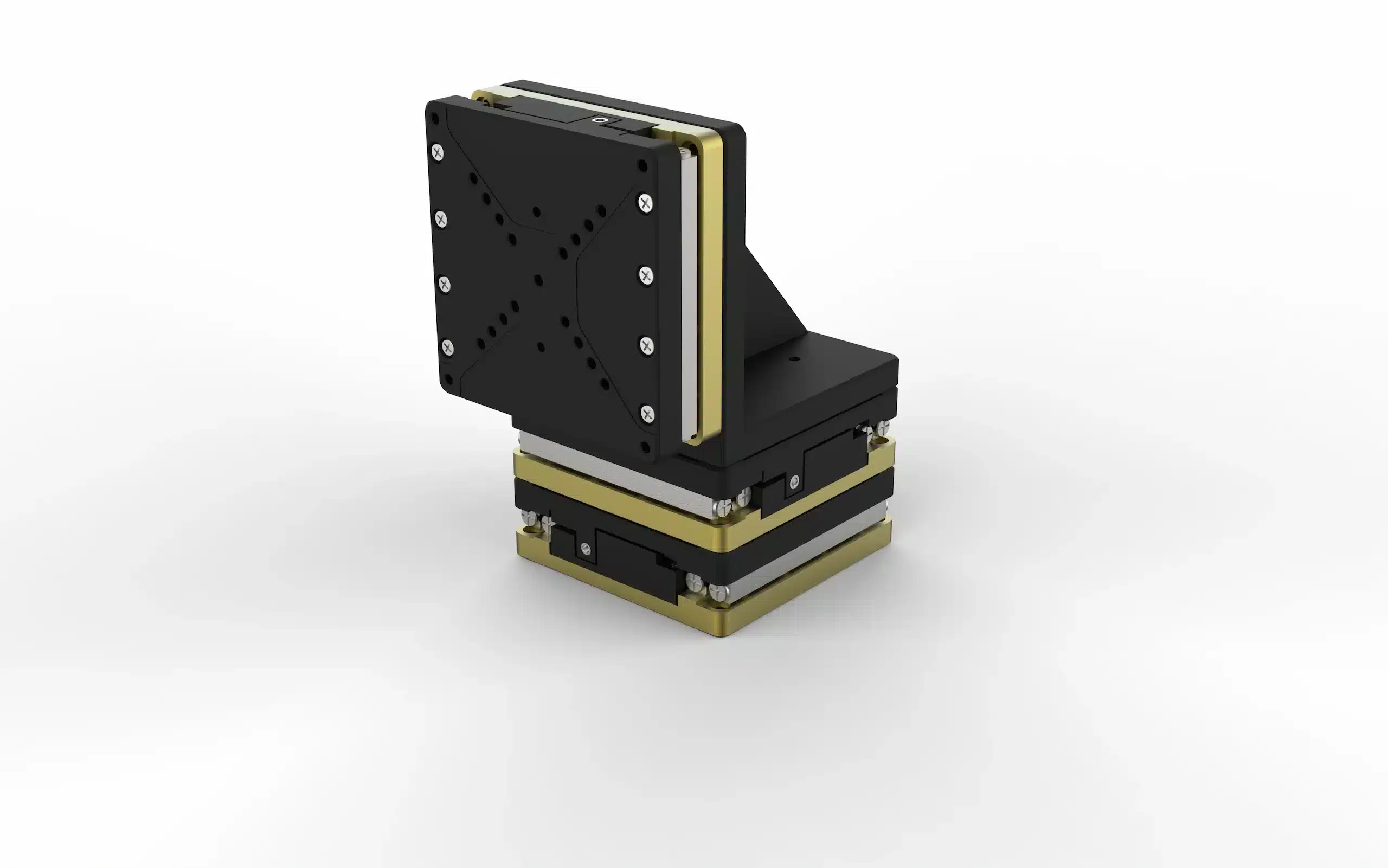

GO Vertical Mounts integrate GO-LS4545, GO-LS6545 and GO-LS8545 stages above other GO stages. The 5 N stage versions lift 0.5 kg and the 10 N versions lift 1 kg.
GO Elevation offers the same force-dependent vertical capability with a flat moving top for mounting situations that benefit from it.
Carry the modular system into high vacuum
Use GO Vertical Mount HV with the matching high-vacuum GO-LS stage and plan the chamber feedthrough, cabling and controller position as part of the complete system.
Linear + rotation
Combine linear travel and rotation

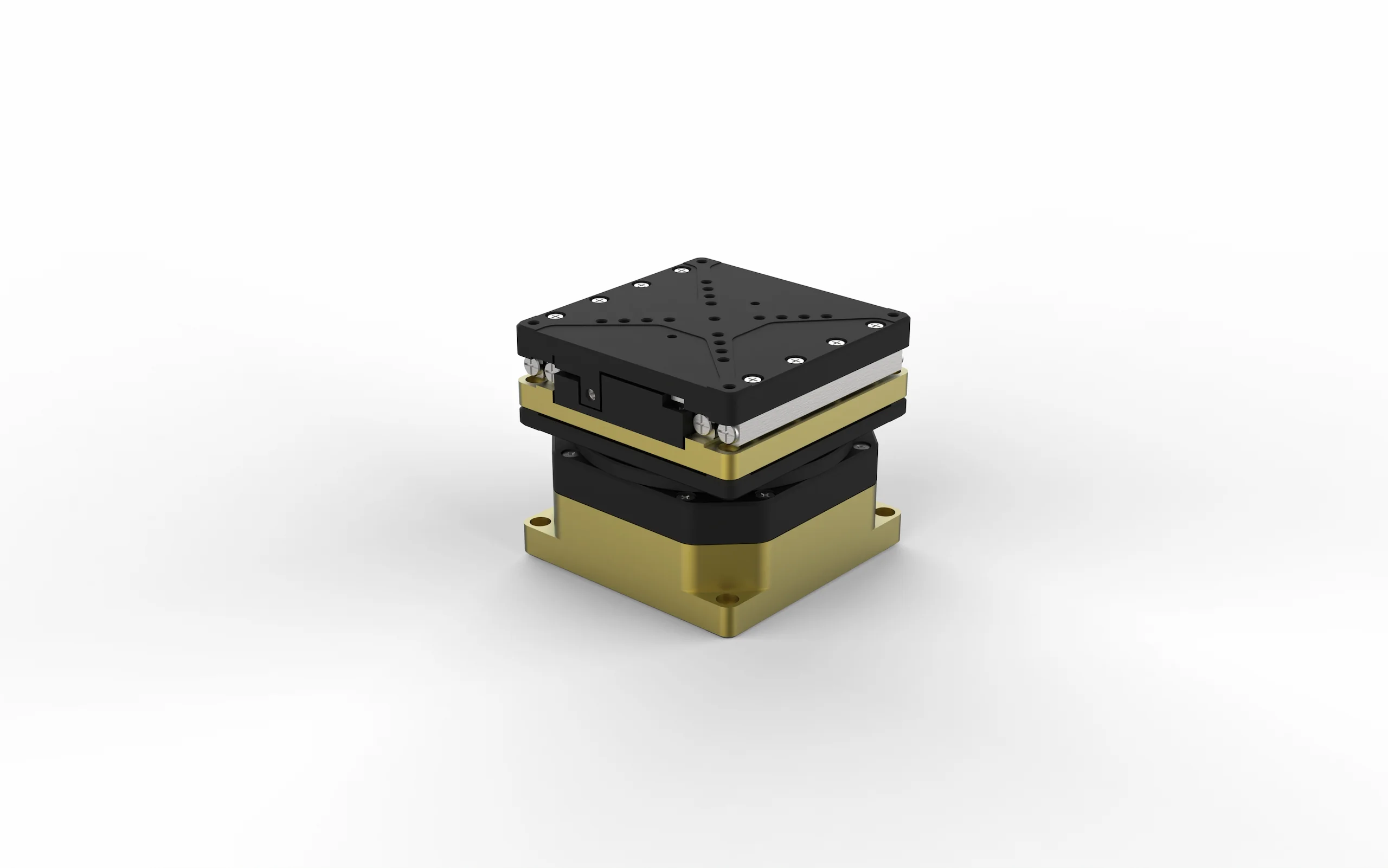

The GO Rotation Stage Adapter Plate connects a GO Linear Stage above a GO Rotation Stage, bringing translation and angular adjustment into one assembly.
Build around the required axes
Use the adapter plate to build configurations such as GO RX for positioning samples, sensors or optical components. The mechanical interface keeps compatible linear and rotation stages within the same modular platform.
Standard and HV versions are available, with the HV adapter supporting operation down to 10⁻⁴ Pa.
Microscope sample handling
Hold slides and Petri dishes for precision positioning

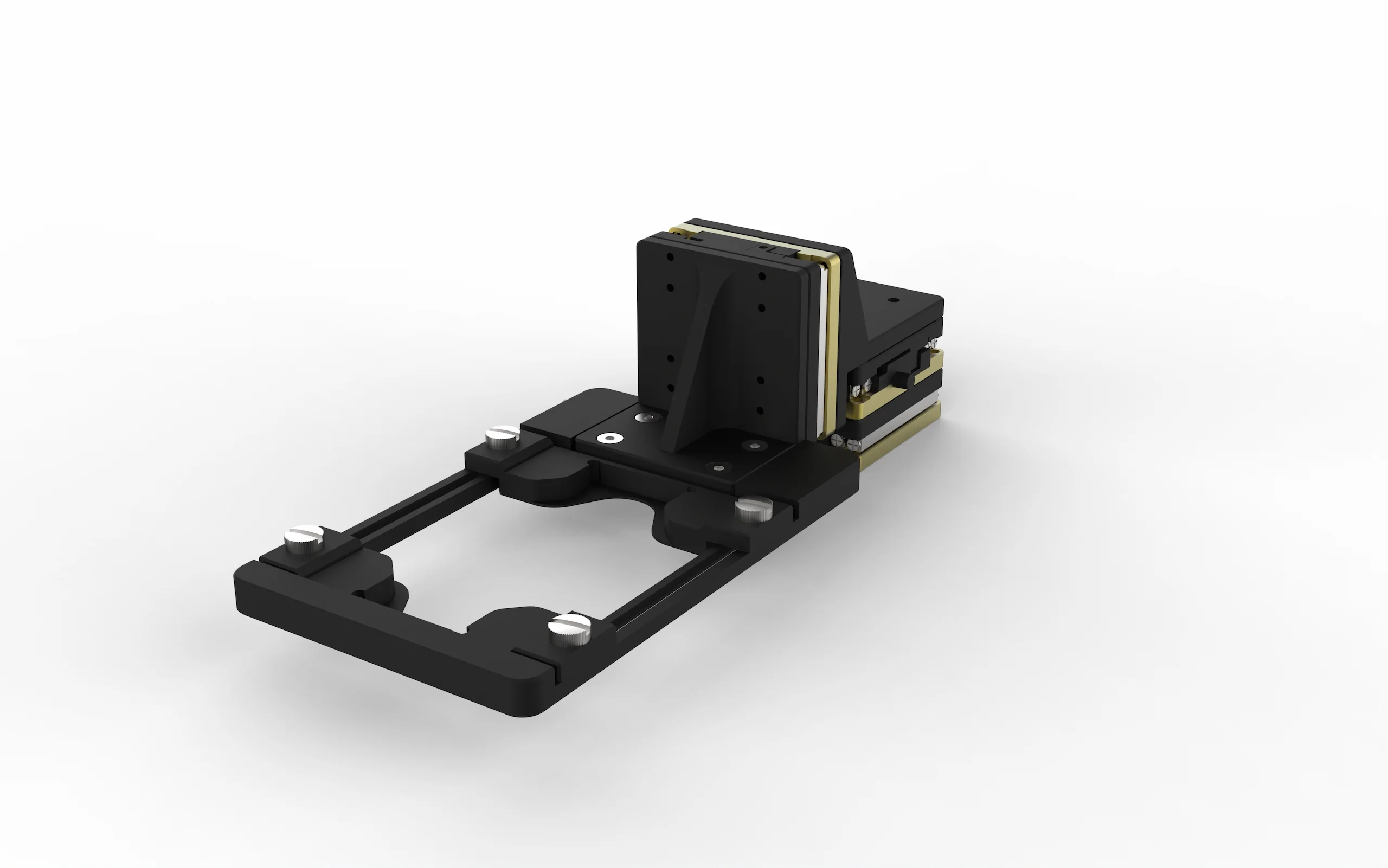

GO Sample Holder 4545 mounts on a three-axis LS4545 assembly and holds microscope slides or Petri dishes for high-resolution microscopy.
Bring sample mounting and motion together
Combine the holder with an LS4545 XYZ system and GO Joystick to bring sample mounting, motorized microscope stage positioning and manual adjustment into one setup.
Check the sample format, stage travel, available microscope space and required working distance when planning the complete assembly.
Hands-on three-axis control
Guide motion from nanometers to millimeters
The GO Joystick provides ergonomic three-axis control, supported by a 1.5 kg base for steady operation. Connect it to your Windows computer by USB and use GO Motion with stages connected through the GO Controller.
Direct control for alignment and microscopy
- Adjust motion speed through joystick deflection; set maximum speed in GO Motion or with keyboard shortcuts.
- Save the current position with the left button.
- Lock selected axes with the right button.
Each GO Controller operates up to three stages simultaneously. The joystick provides a hands-on interface to that control system.
Stage model
Match the accessory to the exact GO stage size and interface.
Axis arrangement
Define the required linear, vertical and rotation axes.
Payload
Include moving stages, mounts, holders and the sample in vertical load calculations.
Environment
Select standard or HV components and plan feedthroughs and cabling.
Clearance and installation
Use product drawings and STEP files to check mounting interfaces and space. A mounting bracket is available for fixed installation of the GO Controller.
Complete your positioning system
Configure the accessories around your task
Tell us your GO stage models, required axes, sample or payload, available space and vacuum requirements. We will help select the mounts, adapter plate, sample holder and controls for your application.
