±10 mm travel
GO HexStage 1
Greater linear travel
- Mounting diameter
- 220 mm
- Height
- 85–105 mm
PRECIBEO GO HexStage
6-Axis Piezo Positioning Stages
Control position and orientation with one platform
Align components in all six degrees of freedom with PRECIBEO GO HexStage. Piezo walking drives combine 2 nm linear minimum incremental motion with strong vertical lifting, smooth continuous movement and self-locking at rest.
6
Controlled degrees of freedom
2 nm
Linear minimum incremental motion
±10°
Angular travel around each axis
2.5 kg
Maximum centered top load
10⁻⁴ Pa
High-vacuum versions
Choose your format
Compare the GO HexStage formats
Choose HexStage 1 when linear travel is the priority, or HexStage 2 when a smaller diameter better fits the instrument. Both provide ±10° angular travel and 1 kg or 2.5 kg centered-load versions.
The 1 kg and 2.5 kg ratings correspond to the 15 N and 30 N Z-drive versions. We can check the working envelope against your combined translations, rotations and payload.
±5 mm travel

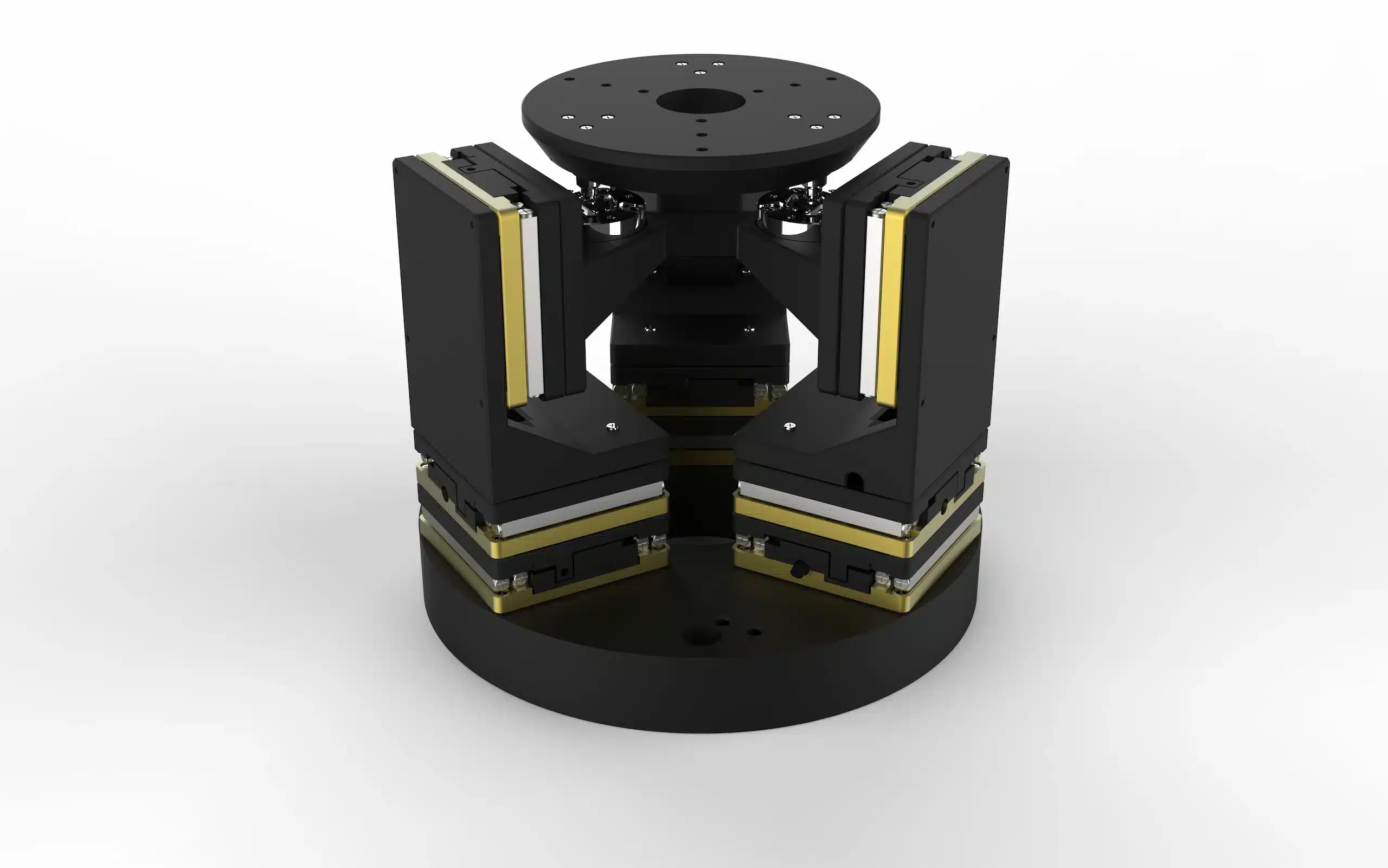

GO HexStage 2
Smaller mounting diameter
- Mounting diameter
- 138 mm
- Height
- 117–127 mm
Six degrees of freedom
What is a six-axis positioning stage?
A six-axis nanopositioning stage controls three translations—X, Y and Z—and three rotations around those axes. These six degrees of freedom let you adjust a component’s location and angular orientation for spatial alignment.
GO HexStage combines these movements in one positioning platform, with standard and high-vacuum versions for instrument integration.
When evaluating a precision hexapod, compare the usable combination of translation, rotation and payload. For compact systems, also check mounting diameter, height and access around the component to be moved.
Six degrees of freedom
Closed-loop nanopositioning and vertical motion
Six degrees of freedom
Control translation along X, Y and Z together with rotation around each axis from one parallel-kinematic positioning platform.
Nanometer-scale linear increments
Piezo walking drives provide 2 nm linear minimum incremental motion over millimeter-scale travel for coarse adjustment and fine alignment in the same system.
High-force vertical positioning
Select the 15 N version to lift a centered 1 kg load or the 30 N version to lift 2.5 kg, with the same force choices available in both HexStage formats.
Smooth motion and self-locking
Closed-loop feedback supports smooth continuous movement and fast move-and-settle behavior, while the drives retain position without continuous drive power.
Compare GO HexStage models
| Specification | GO HexStage 1 | GO HexStage 2 |
|---|---|---|
| Controlled movements | X/Y/Z and rotation around each axis | X/Y/Z and rotation around each axis |
| Linear travel | ±10 mm per axis | ±5 mm per axis |
| Angular travel | ±10° around each axis | ±10° around each axis |
| Linear minimum incremental motion | 2 nm | 2 nm |
| Diameter | 220 mm | 138 mm |
| Maximum centered top load | 1 kg or 2.5 kg | 1 kg or 2.5 kg |
| High-vacuum version | Available | Available |
High-force vertical positioning
Select the drive version for your payload
Both HexStage formats combine strong Z-axis motion with fine control of position and orientation. Include the component, fixture and their center of gravity when specifying the system.
Match the complete working envelope
Payload capacity, center of gravity and simultaneous translations and rotations affect the usable motion envelope. We help check the combined requirement so the selected format and drive version fit the complete alignment task.
Vertical lifting choices
| Z drive version | 15 N | 30 N |
|---|---|---|
| Centered load lifted | 1 kg | 2.5 kg |
| Z speed at maximum top load | >5 mm/s | >1 mm/s |
| Z holding force with power off | 18 N | 33 N |
Six-axis control
Software and controller integration
GO HexStage operates through two daisy-chained GO Controllers. Each controller operates three drive stages; together they provide six control channels through one USB connection.
Plan mechanical and software integration together
The GO DLL C++ and complementary Windows app support programmatic and manual control. Use the product data sheets and STEP models to plan mechanical integration alongside the controllers.
Integration into active optical alignment
Active optical alignment uses a measured optical signal to guide positioning. Plan the optical measurement, feedback logic and alignment software alongside the motion system.
The GO DLL C++ and complementary Windows app provide options for integrating HexStage movement into that workflow.
High vacuum
10⁻⁴ Pa
Vacuum-compatible six-axis stages

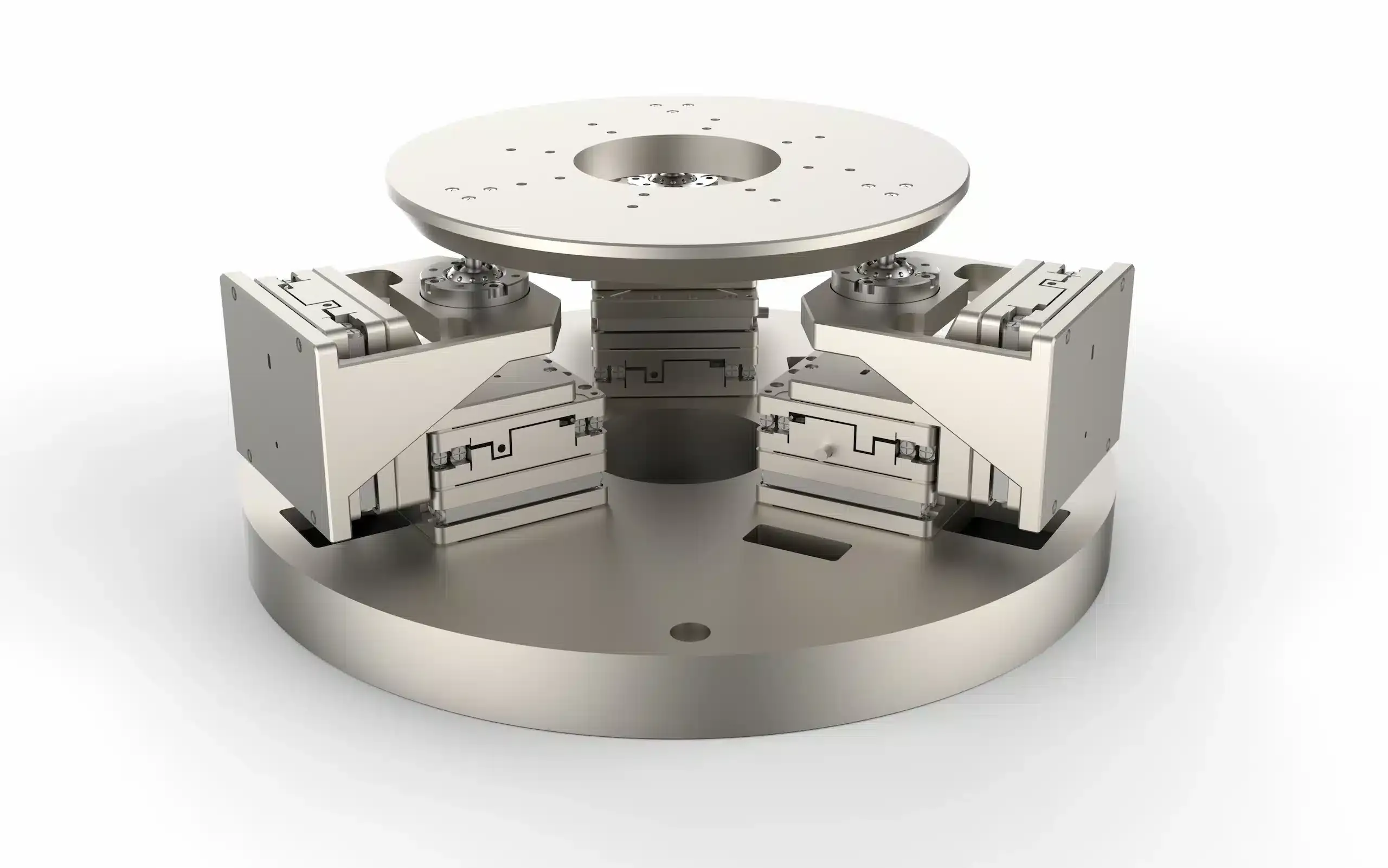

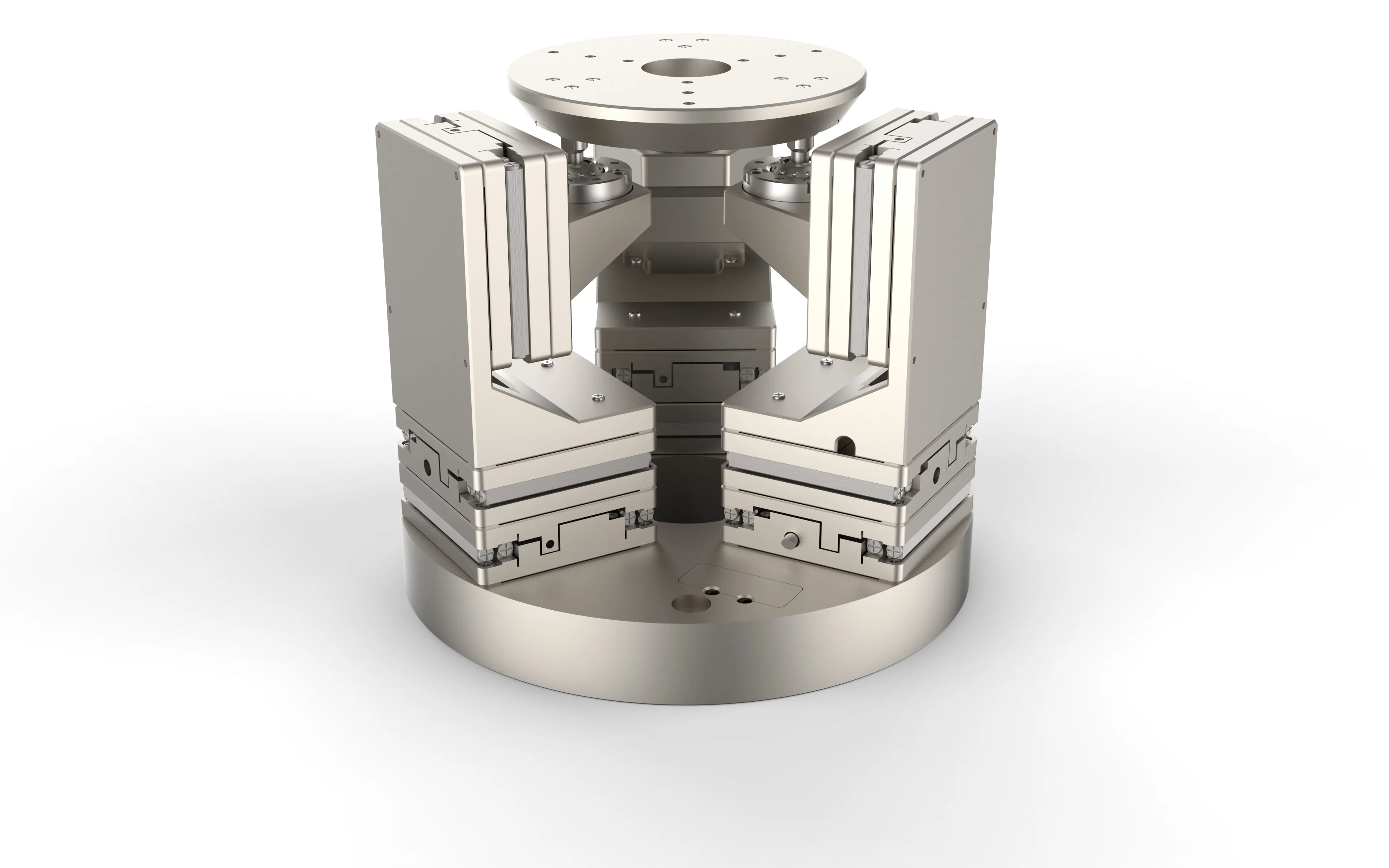

HexStage 1 HV and HexStage 2 HV provide six-axis motion in high vacuum down to 10⁻⁴ Pa.
Vacuum-side cables connect through chamber feedthroughs to air-side cables and the controllers. Include mounting access, cable routing and chamber connections when configuring your high-vacuum positioning system.
Applications
Six-axis alignment for science and industry
Optical alignment
Adjust the position and angle of components, including fixtures for fiber-array alignment
Metrology and inspection
Orient samples, sensors and fixtures relative to the measurement system
Microscopy and advanced imaging
Adjust sample location and viewing orientation
Research and OEM instruments
Integrate six-degree-of-freedom positioning in ambient or high-vacuum equipment
Motion
Define the required linear and angular movement on every axis.
Payload
Include the component, fixture, center of gravity and mounting orientation.
Mechanical envelope
Choose ±10 mm travel with HexStage 1 or the 138 mm diameter of HexStage 2.
Dynamics
Match the 15 N or 30 N Z drive to the payload and required speed.
System
Plan controllers, software, cables, access and the ambient or high-vacuum environment.
Your questions
Frequently asked questions
What is a hexapod?
In precision positioning, a hexapod is a parallel-kinematic platform with six controlled degrees of freedom. A conventional Stewart platform uses six actuators connecting a base to a moving platform. A hexapod stage is selected as a complete mechanical and control system for the required working envelope.
What should I compare in a hexapod controller or six-axis control package?
Check the supported stage configuration, application software and programming interfaces. GO HexStage uses two daisy-chained GO Controllers and the GO DLL C++ with the complementary Windows app. The C++ DLL provides easy-to-use functions for six-axis programmatic integration.
Does 2 nm minimum incremental motion mean 2 nm accuracy?
No. The 2 nm figure specifies the smallest incremental linear movement. Positioning accuracy and repeatability are separate characteristics; consider them alongside payload, mounting and operating conditions.
When are three axes enough?
For planar X–Y–rotation alignment or Z tip/tilt adjustment, explore GO 3-axis stages. Six-axis control adds full spatial positioning and orientation.
Let’s find your configuration
Configure your six-axis positioning system
Tell us the linear and angular movement required, payload, center of gravity, mounting orientation, speed, available space and environment. We will help select the HexStage format, force version, controllers and integration components.
