GO Linear Stage 4545
GO Linear Stage 4545

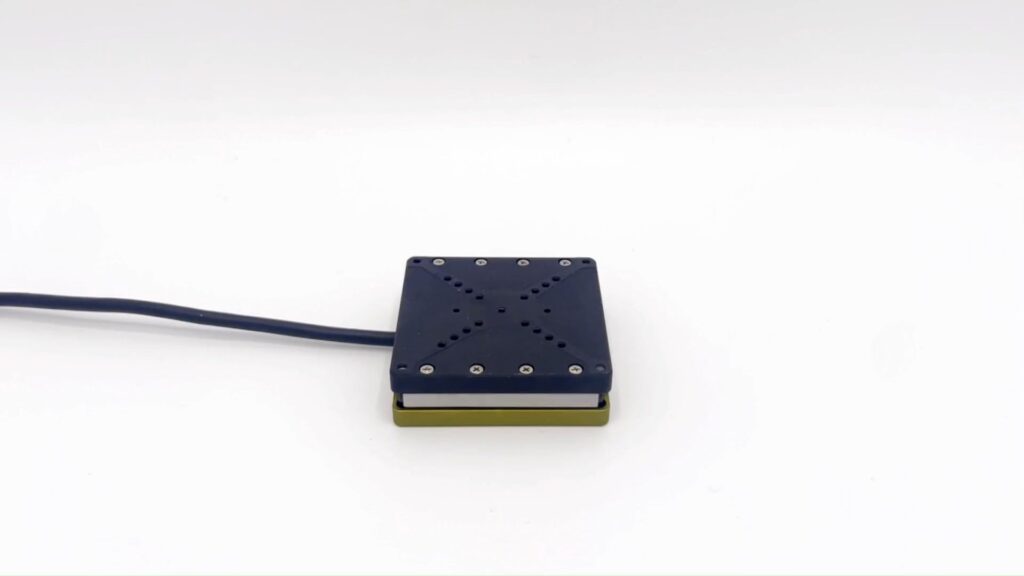

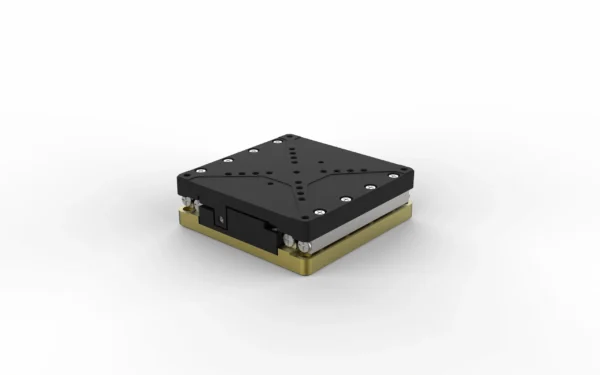

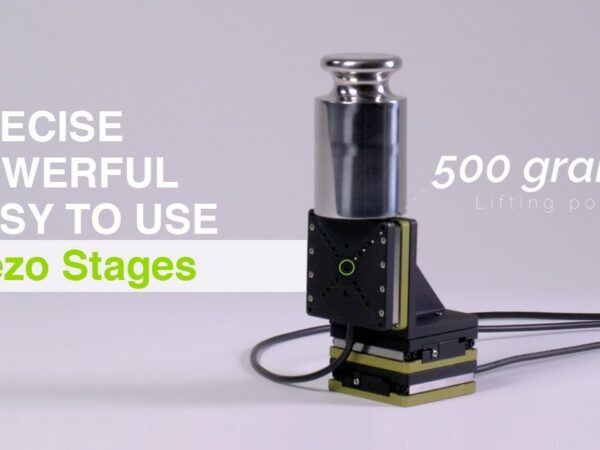

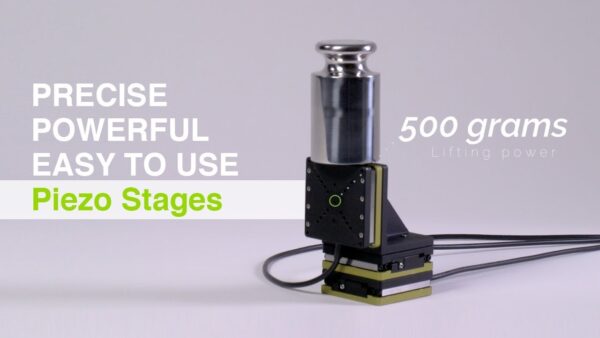

The smallest stage in the 45-series offers a footprint of 45×45 mm, a travel range of 20 mm and is available with 5 N or 10 N operating lift force.

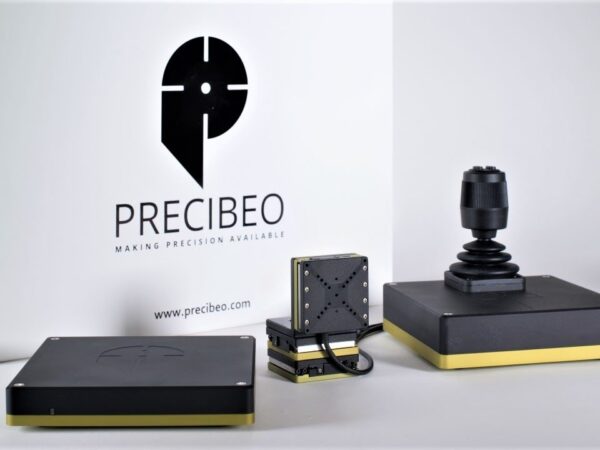

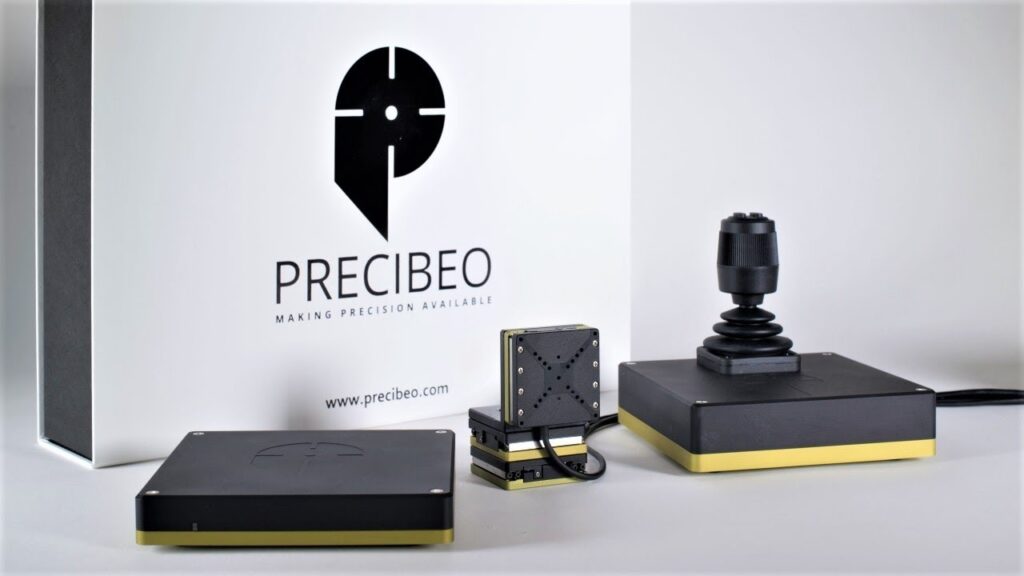

All products in the modular PRECIBEO GO system are compatible and are easily combined into multi-axis systems offering Smooth Continuous Motion, Fast Step & Settling Times and that are Self-Locking at Rest.
| Positioning | GO-LS4545-5N | GO-LS4545-10N |
|---|---|---|
| Travel | 20 mm | |
| Position Sensor | Optical Encoder | |
| Sensor Resolution | 2 nm | |
| Minimum Incremental Motion | 2 nm | |
| Bidirectional Repeatability | +- 100nm (typ. @ full travel) | |
| Straightness & | Flatness;+- 2 µm (typ.) | |
| Pitch | +- 150 µrad (typ.) | |
| Yaw | +- 150 µrad (typ.) | |
| Motion | GO-LS4545-5N | GO-LS4545-10N |
| Maximum Operating Force (Push/Pull) | 5 N (min.) | 10 N (min.) |
| Holding Force (When Power Is Off) | 6 N (min.) | 11 N (min.) |
| Maximum Speed (At No Load) | 8 mm/s | |
| Maximum Speed (At Maximum Operating Force) | 5 mm/s (min.) | 1 mm/s (min.) |
| Drive Type | GO-LS4545-5N | GO-LS4545-10N |
| Motor Type | Piezo Drive | |
| Mechanical | GO-LS4545-5N | GO-LS4545-10N |
| Maximum Load | 2 kg | |
| Guide Type | Crossed Roller | |
| Size | 45x45x14 mm | |
| Weight (without cable & | connector);75 g (+-10%) | |
| Miscellaneous | GO-LS4545-5N | GO-LS4545-10N |
| Cable | 2 m cable (+-5%) with ix Industrial™ connector | |
| Material | Anodized Aluminum | |
