GO Controller
GO Controller

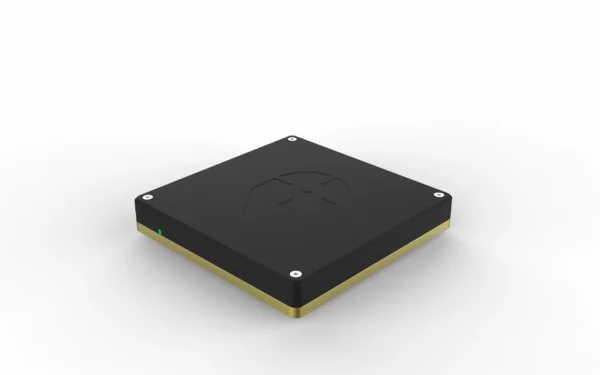

The PRECIBEO GO Controller enables point-to-point nanometer motion control with trapezoidal velocity profiles and PID regulation.
Each PRECIBEO GO Controller controls up to 3 stages simultaneously.
Get started by connecting the GO Stages to the GO Controller, connecting the GO Controller to your computer and installing the PRECIBEO GO Apps.
| Motion | GO Controller |
|---|---|
| Axes | 3 (6 with two daisy-chained GO Controllers) |
| Motion Control Type | Point-to-Point Motion |
| Motion Profile Type | Trapezoidal Velocity Profiles |
| Control Loop Type | Proportional – Integral – Derivative (PID) |
| Interfaces | GO Controller |
| Computer Interface | USB (or RS485 over the GO I/O Port) |
| Stage Interface | ix Industrial™ |
| Command Set | PRECIBEO ASCII Rapid |
| User Software | GO Motion / GO Command / GO LabVIEW Drivers / GO DLL’s |
| Electrical | GO Controller |
| Supply Voltage | 48 VDC from external power adapter |
| Output Voltage | 0 to 48 VDC |
| Max Output Power | 25 W |
| Mechanical | GO Controller |
| Size | 135x135x25 mm |
| Weight | 0,5 kg (+-10%) |
| Miscellaneous | GO Controller |
| Operating Temperature Range | 0-50 °C |
Related products
-

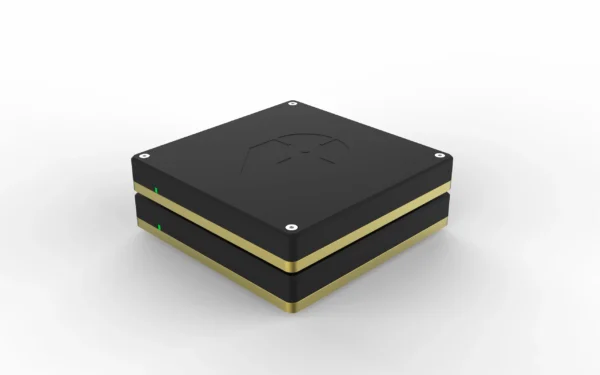

GO Controller (Daisy Chained)
The PRECIBEO GO Controller can be daisy chained so that multiple GO Controllers can be controlled over the same USB port, as in the example above with 2 GO Controllers and 6 axes.
-

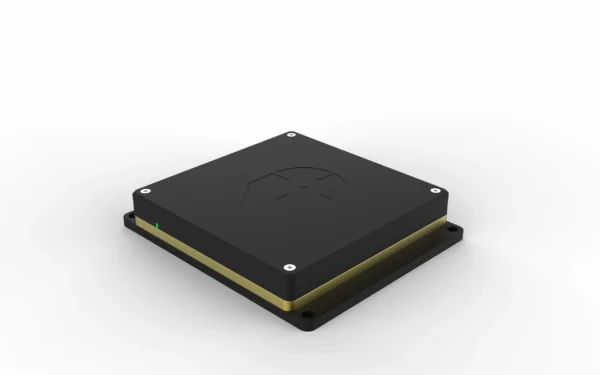

GO Controller (with Mounting Bracket)
The PRECIBEO GO Controller can be fitted with a Mounting Bracket for fixed mounting.
